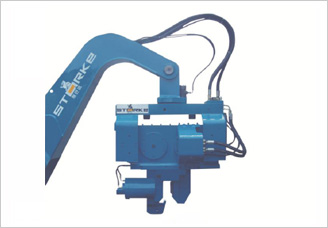

Hydraulic Vibratory Hammer is a pile driving and excavation on construction machine broadly used in all kings of foundation construction work. The machine utilizes its periodic excitiong force to hydraulically press the soil around the pile so as to reduce the soil's frictional resistance to the pile, and utilizes the pile's own weight and the weight of the pile hammer, and applies a pressure downward if necessary to force the pile enter into the soil; or on the contrary applies a pulling force upward to pull the pile out of the ground.
Beacuse of its low noise, excellent pile-sinking effect, capability of being used under the water & other advantages, the hydraulic vibration hammer develops rapidly and is broadly used in the pile-sinking & pile-puling construction.
Model/Parameter BR-35S BR-40S BR-50S BR-80 BR-35L BR-40L BR-50L BR-40T BR-150 BR-250
Eccentric Moment (kg.m) 5.0 6.0 7.7 26 5.0 6.0 7.7 6.0 51.0 104.0
Max. Centrifugal Force (kN) 350 400 530 800 350 400 530 400 1520 2498
Max.Frequency (rpm) 2600 2500 2500 1650 2600 2500 2500 2500 1650 1480
Amplitude Without Clamp (mm) 14.2 17.5 20.3 23.3 17.1 20.7 23.9 20.7 20.8 34.6
Amplitude With Clamp (mm) 9.7 12.1 14.2 17.5 11 13.5 16.1 13.5 15.8 23.2

Max. Line Pull For Extraction

(kN)

120 120 120 400 120 120 120 120 600 1200
Max. Hydraulic Power (kw) 91 110 116 214.2 91 110 116 116 408 680
Max.Presuure (bar) 350 340 350 340 350 340 350 350 340 340
Max. Oil Flow (L/min) 156 200 200 378 156 200 200 200 720 1200
Weight without Clamp 1001 1030 1090 3370 992 968 1035 992 6252 10120
Total Weight (kg) 1320 1350 1410 4110 1241 1288 1355 1247 7802 14160

Extemality

Size



A (mm) 1185 1185 1251 2286 1130 1130 1210 1220 2746 2360
B (mm) 592 606 616 590 705 720 730 668 680 1500
C (mm) 312 320 330 355 312 320 330 540 450 760
D (mm) 1523 1523 1557 1750 1152 1152 1186 1348 2100 2970
E (mm) 520 520 520 747 520 520 520 845 917 1240
F (mm) 2043 2043 2077 2497 1672 1672 1706 2193 3200 4211

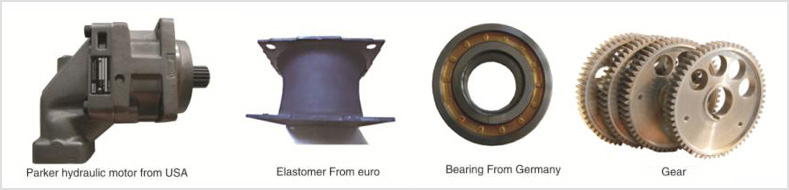

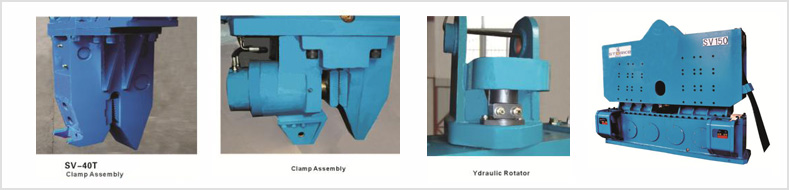

The international well-known brand & high quality fittings are adoptedo; each part is strictly tested before installation, which ensures the durability & low failure rate of BR series hydraulic vibratory hammer. We also do our upmost to adopt the standard parts for easy replacement & repair.
The ingenious mechanism, rational structural layout & unique hydraulicoil control system provide BR series vibratory hammer with outstanding performance, excellent maneuverability, compact appeaearn ceand easy operation.
Excavator Model Number HITACHI KOMATSU KATO SUMTOMO KOBELCO CAT HYUNDAI DAEWOO VOLVO
Hammer Model Number
BR-35S EX200 PC200 HD700 SH200 SK200 215   DH07 EC180B
    PC210         R180L
BR-35L EX270 PC220 HD800 SH200LC SK210 219   DH07S EC210B
BR-40S EX300 PC250 HD880 SH240 SK220 240 R210LC DH10
  UH10         300B     EC240B

BR-40L

UH12 PC300 HD1100 S390 SK270 322 R250LC DH10L
BR-50S EX400 PC310 HD1250 SH330 SK300 325D R290LC 320 EC290B
            325L
BR-50L UH16 PC360 HD1430 SH330LC SK320 324 R320LC 330LC EC330B
BR-80S EX450H PC400 HD2045 SH350D SK450 330D R360LC DH16 EC350
            330L
BR-80L EX850 PC410 HD2500ES SH450D SK500 345C R450LC DH20 7802
