Products - Horizontal Directional Drilling Rig
Special Features

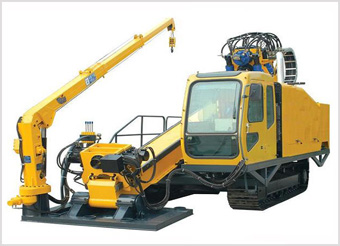

- The BR series is a full Hydraulic self-propelled with crawler
- Main auxiliary equipments, such as diesel engine, hydraulic pumps, valves motors, reducer and key hydraulic components are all selected and adopted from famous-brand products.
- Adopting low-emission and low noise of diesel engine, the rig is more suitable to be applied for performance in the city.
- Adopting advanced control system, the power consumption is reduced to the lowest level under non-loaded operation condition
- The mud pump is driven hydraulically with mechanical gear shift. The displacement could be adjusted flexibly according to different geological conditions and performance techniques.
- Adopting injection and recirculation storage procession method, the efficiency will be increased and the intensity of labor will be decreased.
Model |
BR-15L |
BR-20 |
BR-28 |
BR-32 |
BR-40 |
Engine(Kw) |
66.2 |
110 |
132 |
145 |
175 |
Push/Pull force(kN) |
75/150 |
200/200 |
280/280 |
330/330 |
400KN |
Torque(kNm) |
4.2 |
6 |
10 |
13 |
15kN.m |
Speed(RPM) |
0-60,0-120 |
0-70,0-140 |
0-56,0-112 |
0-48,0-96r
336D |
0-40,0-80 |
Feeding Stork(mm) |
3500 |
3300 |
3300 |
3300 |
5000 |
Drilling angle(°) |
0-20 |
0-20 |
0-20° |
0-20° |
8-20 |
Dimension(mm) |
5.8×2.05×2.380 |
5.9×2.1×2.4 |
5.7×2.1×2 |
5.82×2.25×2.4 |
7.8×2.3×2.35 |
Weight(T) |
6.1 |
6.5 |
8.2 |
8.4 |
16T |
Dia. Of the Rod |
60 |
60 |
73 |
73 |
60 |
Jib crane |
- |
- |
- |
- |
2T |
Model |
BR-60 |
BR-120 |
BR-180 |
BR-300 |
BR-450 |
Engine(Kw) |
225 |
200×2/360×1 |
470 |
610 |
784 |
Push/Pull force(kN) |
610 |
1220 |
2450 |
4000 |
4500 |
Torque(kNm) |
27 |
6 |
70 |
98 |
120 |
Speed(RPM) |
0-45,0-90 |
0-45,0-90 |
0-42,0-84 |
0-42,0-84 |
0-42,0-84 |
Feeding Stork(mm) |
6000 |
- |
- |
- |
- |
Drilling angle(°) |
8-18 |
8-16 |
8-16 |
8-16 |
8-16 |
Dimension(mm) |
9×2.75×2.8 |
14.5×2.8×2.85 |
14.5×3.15×3 |
14.5×3.15×3 |
17.2×3.15×3.4 |
Weight(T) |
24T |
30T |
44T |
52T |
45T |
Dia. Of the Rod |
102 |
127 |
140 |
127/140 |
140/219 |
Jib crane |
2T |
3T |
3T |
3T |
4T |
