Products - Hydraulic Impact Hammer
Special Features
Hydraulic Impact Hammer is one kind of high efficiency pile driving equipment with easy operation, low noisy and pollution in the engineering site, also can adjust the driving rate and driving stroke with easy operation method. It can meet the pile-driving requirement for different pile type with variable pile size, even in Complex geological condition. Our hydraulic impact hammer series include BR-5, BR-8, BR-11, BR-14, BR-17 & BR-20.
Technical Parameter of Series Hydraulic Pile Hammer
| Model No. | BR-5 | BR-8 | BR-11 | BR250D | BR260D | BR280D | |
|---|---|---|---|---|---|---|---|
| Working Parameter | Strike Energy (kNm) | 60 | 96 | 132 | 210 | 255 | 300 |
| Max. Stroke of Hammer (mm) | 1500 | 1200 | 1200 | 1800 | 1800 | 1800 | |
| Strike Frequency (1500mm/200mm) | 36/90 | 36/90 | 36/90 | 30/90 | 30/90 | 30/90 | |
| Ram Weight (kg) | 5000 | 8000 | 11000 | 14000 | 17000 | 20000 | |
| Hydraulic System | Single Cylinder | Double Cylinder | |||||
| Power Parameter | Power of Engine (kw) | 132 | 191 | 239 | 298 | 320 | 390 |
| Working Pressure (Mpa) | 24 | 24 | 24 | 24 | 24 | 24 | |
| Working Flow (L/min) | 200 | 260 | 380 | 520 | 640 | 760 | |
| Hydraulic Oil Tank (L) | 780 | 1100 | 1300 | 1600 | 1800 | 2000 | |
| Diesel Oil TAnk (L) | 300 | 400 | 500 | 550 | 550 | 600 | |

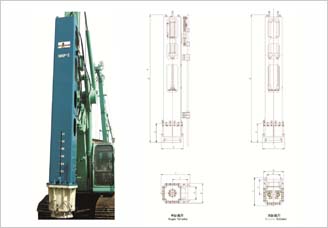

| Structure Parameter | A (mm) | 6540 | 7298 | 7926 | 6020 | 6020 | 6300 |
| B (mm) | 880 | 1100 | 1100 | 1380 | 1445 | 1510 | |
| C (mm) | 1138 | 1398 | 1483 | 1253 | 1293 | 1333 | |
| D Central Distance of Steering Wheel (mm) | 600X 100 | 600X 100 | 600X 100 | 600X 100 | 600X 100 | 600X 100 | |
| E (mm) | 570 | 700 | 725 | 800 | 800 | 800 | |
| F (mm) | 980 | 1160 | 1160 | 1160 | 1210 | 1260 | |
| G (mm) | 1060 | 1200 | 1200 | 1200 | 1250 | 1300 | |
| Weight of Hydraulic Hammer (kg) | 10450 | 14500 | 17500 | 22900 | 25300 | 29600 | |
| Weight of Power Pack | 4000 | 5500 | 5800 | 7500 | 8000 | 8500 | |
| Size of Power Pack | 2.5 X 1.3 X 1.9 | 2.8 X1.4X 1.9 | 3.2 X 1.55 X 1.95 | 3.6 X 1.65 X 2.5 | 3.6 X 1.65 X 2.5 | 3.9 X 1.8 X 2.5 | |
