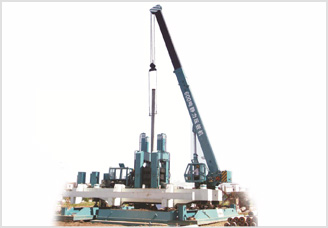

Products - Moveable Silent Pile Machine
Our Movable Silent Pile Machine, BR series pile driving machine are introduced as one of the most advanced technology for free of noisy and vibration. With simple operation & easy maintenance, high piling efficiency, it is becoming more & more pop for the piling contractor in international market, especially in South-East Asia country as well as China local market.
| Technical Data of BR180, BR240,BR320, BR400, BR500, BR600, BR700, BR800 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | (Unit) | BR180 | BR180 | BR320 | BR400 | BR500 | BR600 | BR700 | BR800 | |||
| Max. Pressing Force | (kN) | 1800 | 2400 | 3200 | 4000 | 5000 | 6000 | 7000 | 8000 | |||
| Suitable Square Pile | (mm) | 250, 300, 350 | 300, 350 | 250, 300, 400 | 300, 350 | |||||||
| Suitable Round Pile | (mm) | 300, 400 | 300, 400 | 300, 400, 500 | 300, 400, 500 | 300, 400, 500, 600 | ||||||
| Pile Driving Speed | (m) | 5.4/1.6 | 4.4/2.1 | 5.6/ 1.5 | 4.7/ 1.3 | 5.2/ 1.2 | 5.6/ 1.1 | 5.2/ 1.1 | 5.3/ 1.0 | |||
| Pile Driving Stroke | (m) | 1.5 | 1.5 | 1.8 | ||||||||
| Loading Pressure | Long Feet | (Mpa) | 0.112 | 0.068 | 0.105 | 0.119 | 0.117 | 0.125 | 0.128 | 0.144 | ||
| Short Feet | (Mpa) | 0.123 | 0.08 | 0.108 | 0.126 | 0.131 | 0.136 | 0.158 | 0.192 | |||
| Horizontal Step Place | (mm) | 600 | 600 | 3300 | 600 | 600 | ||||||
| Vertical Step Place | (mm) | 2000 | 3000 | 800 | 3000 | 3000 | ||||||
| Side Pile Driving Distance | (mm) | 600 | 850 | 910 | 930 | 1055 | 1100 | - | ||||
| Rotating | (o/Time) | 12 | 12 | 15 | 15 | 15 | 12 | 12 | 12 | |||
| Power Rate | Kw | 76.5 | 90.5 | 97.5 | 105.5 | 115.5 | 133.5 | 153.5 | 153.5 | |||

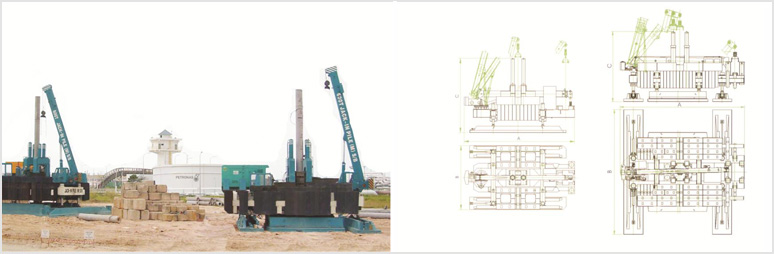

| Mens. | (AxBxC)(m) | 9.14 x 5.14 x 5.94 | 9.58 x 5.84 x 6.22 | 11.935 X 9.5 X 6.586 | 12.91 X 10 X 7.38 | 12.845 X 11.4 X 7.727 | 13.55 X 12 X 7.436 | 13.554 X 13 X 7.461 | 13.6 X 13.5 X 7.85 | |||
| Weight | (t) | 60 | 80 | 120 | 140 | 160 | 178 | 186 | 190 | |||
