Products - Kelly bar and Drilling tools

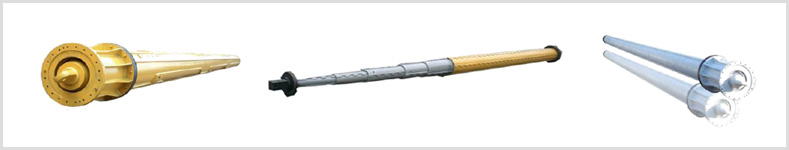

We can supply all kinds of Kelly bars compatible with Bauer, Soilmec, Mait, Casagrande, IMT and other drilling rigs.
Special Features
- All Kelly bars are available in interlocking, full interlocking, friction and combined type. Length and Kelly stub can be required.
- Specially selected steel pipes and use of special steel drive keys and locks are the key features of our Kelly bars.
- Drive Keys and lock recesses with special designed structure, particular manufacturing process and testing in the lab and worksite guarantee long Kelly service life
- Standardized square Kelly drive stub for connecting all types of drilling tools.
Specifications
| O.D (D mm) | No. of section | L (m) | Torque (kNm) | Drilling depth (m) | Drilling rigs matched with |
|---|---|---|---|---|---|
| 508 | 4,5,6 | 10-16 | 360 | 36-90 | XCMC,YUTONG,SANY,TEG |
| 470 | 4,5 | 10-16 | 280 | 36-70 | YUTONG,XCMG,SUNWARD,TEG,SANY |
| 440 | 4,5 | 10-16 | 250 | 36-70 | MAIT,SUNWARD,SANY,YUTONG,TEG |
| 406 | 4,5 | 10-15 | 220 | 36-60 | BAUER,SOILMEC,CMV,IMT,XCMG,YUTONG |
| 377 | 4,5 | 10-15 | 220 | 36-55 | BAUER,MAIT,YUTONG,SUNWARD |
| 355 | 3,4 | 10-14 | 150 | 36-55 | CMV,SOILMEC,YUTONG,XCMG |
| 340 | 3,4 | 10-14 | 120 | 36-55 | BAUER |
| 273 | 3 | 10-14 | 120 | 38 | BAUER,SOILMEC,SUNWARD |

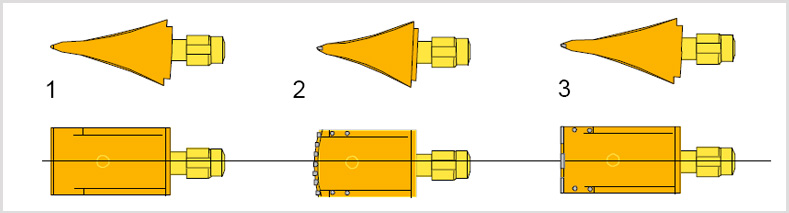

We can provide any kind of drilling tools for any soil and rock type.
